Specification:

Open style: Open and hidden Unswitched Floor socket

Panel Dimension: 81*102mm

Panel Material: Stainless steel

Finishing: Wire drawing / Polishing / Spray painting

Interface size: 2 Modules

Bracket Material: Zinc alloy & Al. Alloy

Base box material: Steel + Zinc plated

Features:

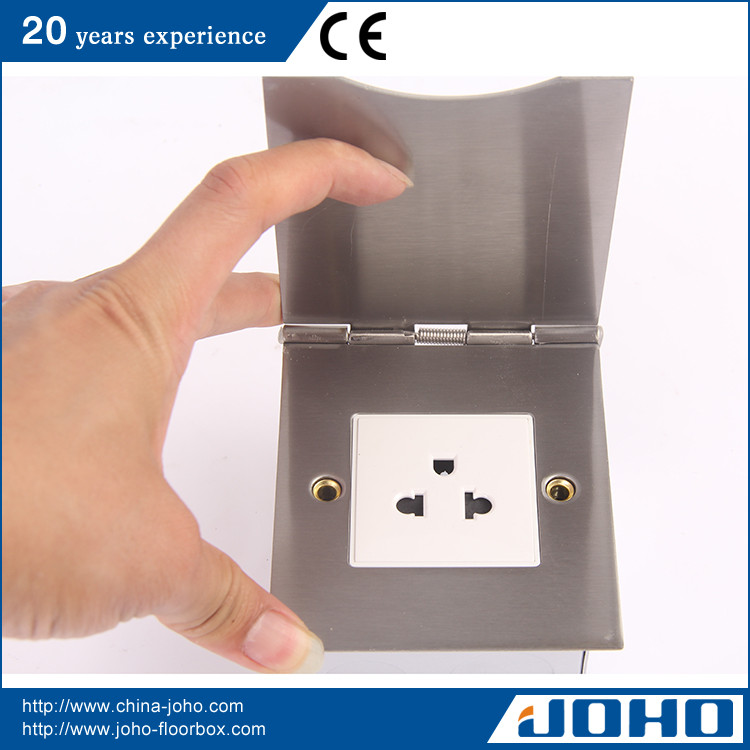

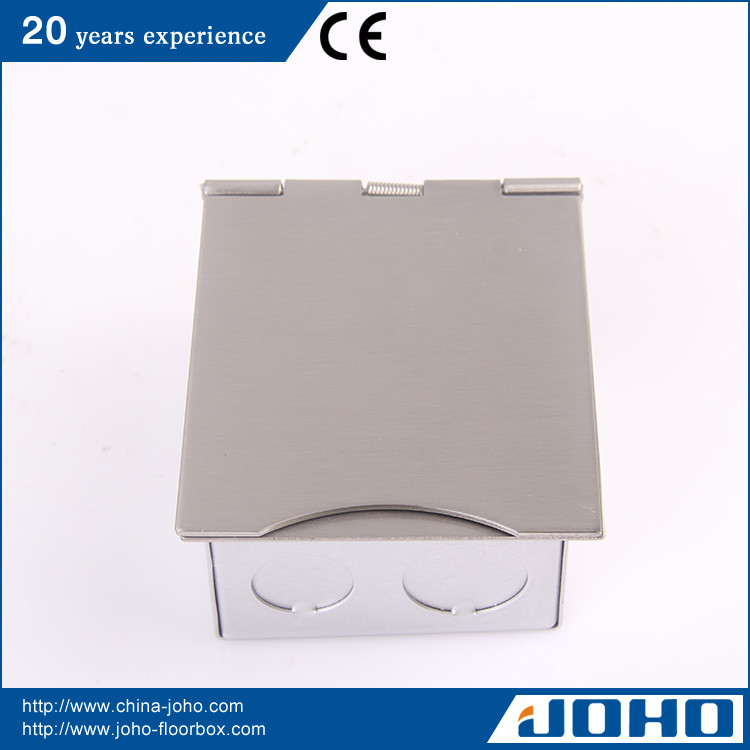

Brushed steel single floor mounted socket with provided hinged cover.

Power socket:

Such as German outlet 16A 250V AC, French outlet 16A 250V AC, British outlet 13A 250V AC, American outlet15A/20A 125V AC, Australian outlet 10A 250V AC, Universal outlet 10A 250V AC, 2pole outlet 10A 250V AC,

Weak data:

Computer Cat 5E, Cat 6, Telephone

For special requirements & OEM /ODM service, please consult us.

Junction Box

Temporary lid

Secure to box body during concrete pour to prevent ingress of slurry.

Base box

Item no: DCD-101

Ga-Steel box body: 74.3*77*50mm

Application: Wooden floor, Ceramic floor, Marble floor, Carpet floor, Concrete floor and so on.

FAQ:

1. How much for one piece sample?

Some cheap ones may free for 1pcs, but need to see the actual stock.

Some expensive like DCT-638 Double pop up floor box and desktop socket, we will quote you the unit price.

2. How long to make a sample?

If with no extra demand, it can be shipped within 1 working day.

3. Is the sample fee refundable or not?

Sure, refundable once order confirmed.
