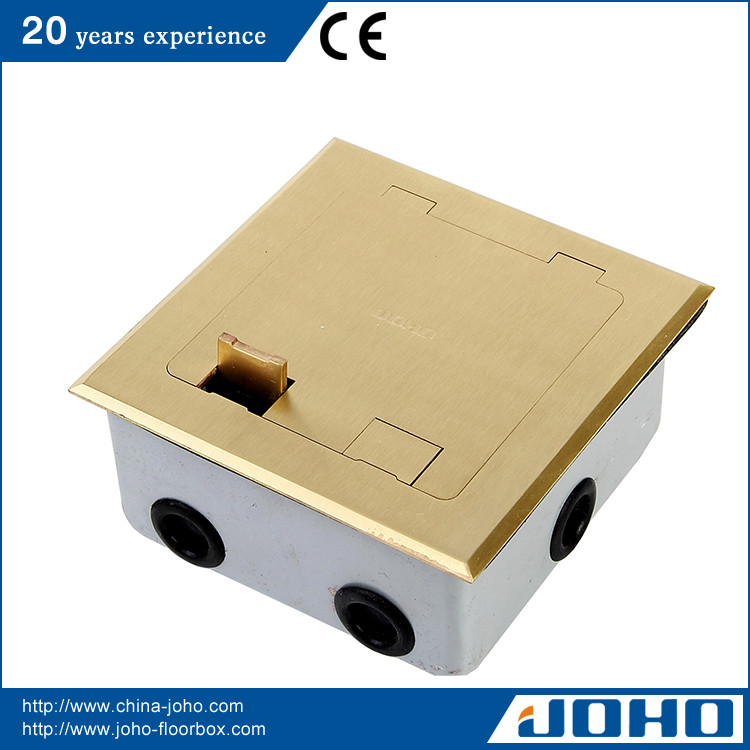

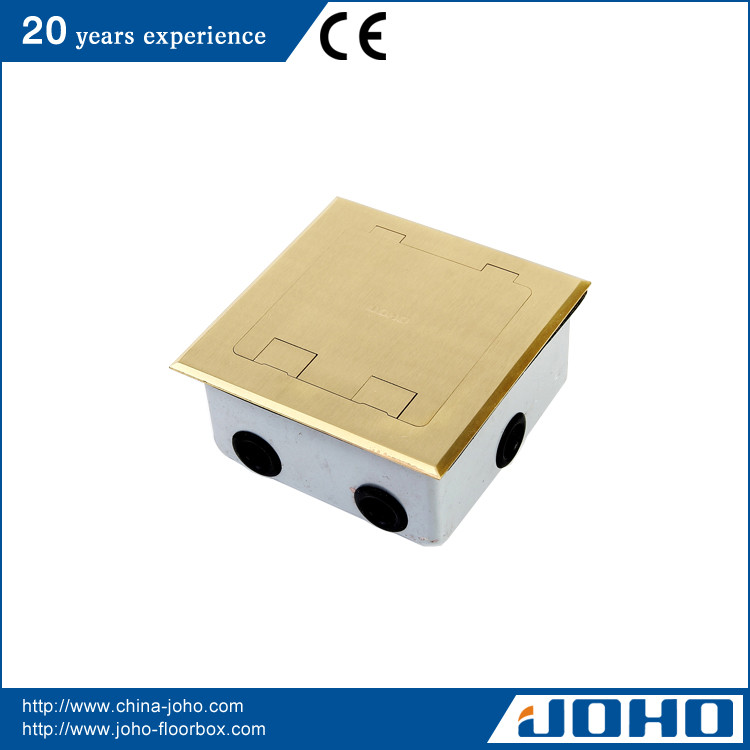

DCK-146/G Flip Type Square Shape Brass Floor Socket

Features:

1. Compact and stylish, Flush Floor Boxes provide ready access to power and communication outlets recessed in the floor.

2. Flip type square shape brass floor socket suitable for use in: Modern open plan living areas, home theaters, showrooms, shop-front displays, boardroom tables, schools, universities, and public buildings.

3. Available in Brass and Stainless steel, the hard-wearing cover bevels down to a fine edge under foot and is suitable for use with polished floor boards, carpet, ceramic tiles and vinyl floor coverings. (Not suitable for use in wet areas).

4. A versatile, practical and decorative solution to your open plan cabling needs.

5. Two small flaps allow cords out of the box when in use and close flat when not in use.

Basic Parameter:

Panel Dimension: 146*146mm

Panel Material: Brass alloy

Finishing: Wire drawing / Polishing / Spray painting

Interface size: 4 Modules

Base box material: Steel & Zinc plated

For special requirements & OEM /ODM service, please consult us.

Available sockets:

Power socket:

Such as German outlet 16A 250V AC, French outlet 16A 250V AC, British outlet 13A 250V AC, American outlet15A/20A 125V AC, Australian outlet 10A 250V AC, Universal outlet 10A 250V AC, 2pole outlet 10A 250V AC,

Weak data:

Computer Cat 5E, Cat 6, Telephone, TV, Audio Video ……

USB power 1000mA 5V

45 Type modules

118 Type modules

120 Type modules

128 Type modules

UL listed receptacle modules

Please check all kinds of sockets refer to Product - “Accessories”.

Outline Drawing:

F.G. H>30mm can use longer fixing screws.

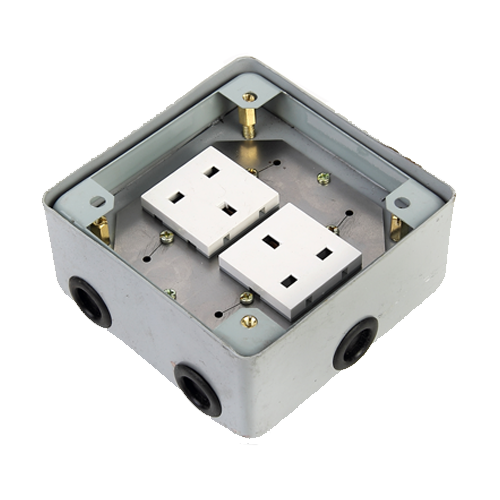

Junction Box

Ga-steel box body: 135*135*65mm

Application: Wooden floor, Ceramic floor, Marble floor, Carpet floor, Concrete floor and so on.

FAQ:

1. Will you provide spare parts?

If you have this requirement, we can do it for you. Normally spare include packing box, screws to install the product, and some other necessary accessories.

2. How about the quality?

Our professional QC team will inspect the floor box for each one piece.

3. Could I buy 1 piece sample first and small order?

Of course, support sample order and small order, especially for new customers under certain condition.
