DCK-146/P Open Type Floor Socket Box

Short Description:

Model No.: BS-103 Open Style: Double gang aluminum Desktop Socket Panel Size: 266*130mm Installation Size: 254*117*77mm Panel Material: Aluminum alloy Panel color: Black / Silver

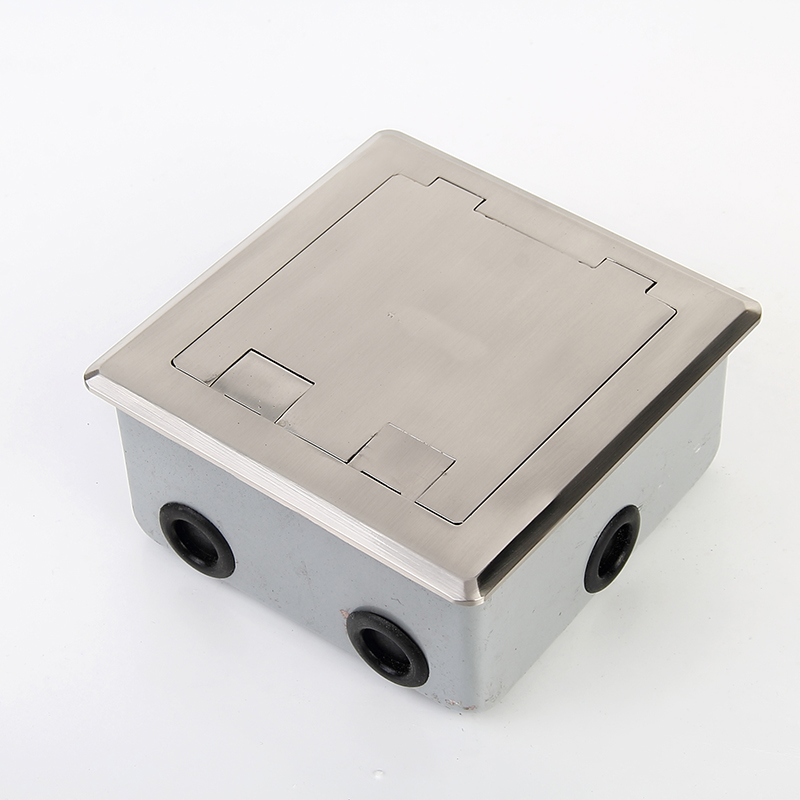

DCK-146/P Stainless steel Material Open Type Floor Socket Box

1. Two types of finishes for your choice.

2. Protect cables and reduce risk of damage to all incoming and outgoing cables.

3. Cover top features low profile beveled flange to prevent tripping hazards.

Model	DCK-146/G	DCK-146/P
Panel Material	Brass alloy	Stainless steel
Surface color	Gold	Silver

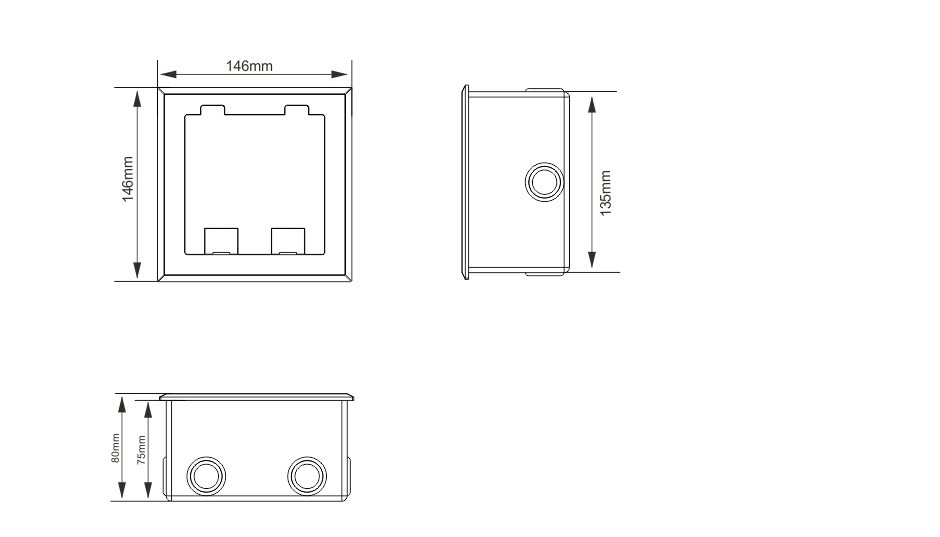

Panel size	146×146mm
Cutout	138×138mm
Frame capacity	6 modules
Base Box	Ga-steel box 135×135×65mm
Temporary Lid	Secure to box body during oncrete pour to prevent ingress of slurry.
