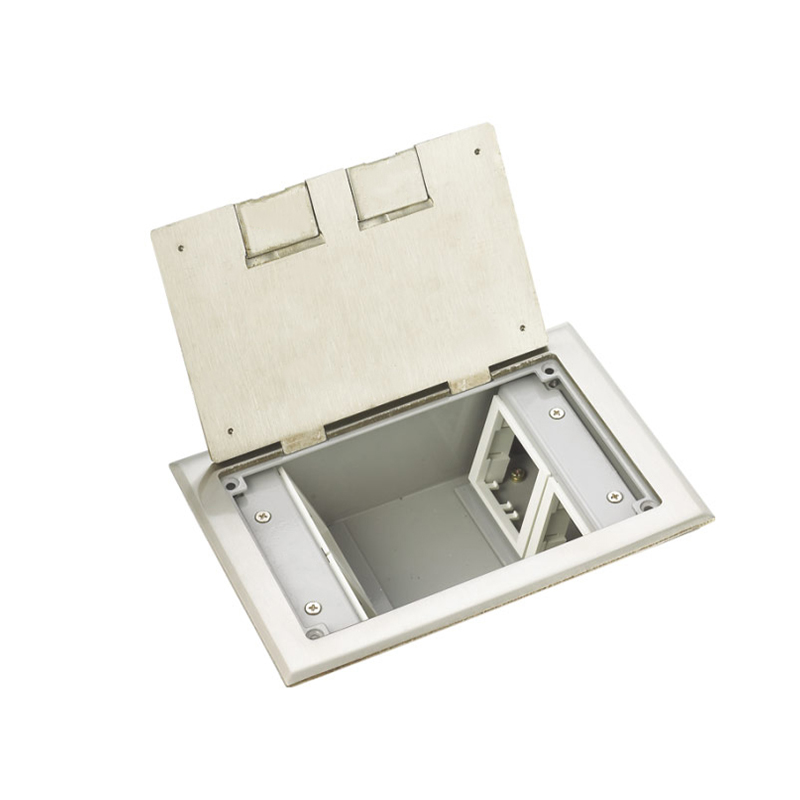

DCK-145 & DCK-250 Open Type Floor socket box

Short Description:

Compact with the ground after installation, small protrusion. Large capacity of the modules, Simple structure and stable performance.

DCK-145 & DCK-250 Open Type Floor socket box


  1. Two types of finishes for your choice.

  2. Protect cables and reduce risk of damage to all incoming and outgoing cables.

  3. Cover top features low profile beveled flange to prevent tripping hazards.


Model

DCK-145/G

DCK-145/P

Panel Material

Brass alloy

Stainless steel

Surface color

Gold

Silver

Panel size

210×145mm

Cutout

203×138mm

Frame capacity

8 modules

Base Box

Ga-steel box

200×135×75mm

Temporary Lid

Secure to box body during oncrete pour to prevent ingress of slurry.



Model

DCK-250/G

DCK-250/P

Panel Material

Brass alloy

Stainless steel

Surface color

Gold

Silver

Panel size

250×180mm

Cutout

243×173mm

Frame capacity

10 modules

Base Box

Ga-steel box

240×170×75mm

Temporary Lid

Secure to box body during oncrete pour to prevent ingress of slurry.
