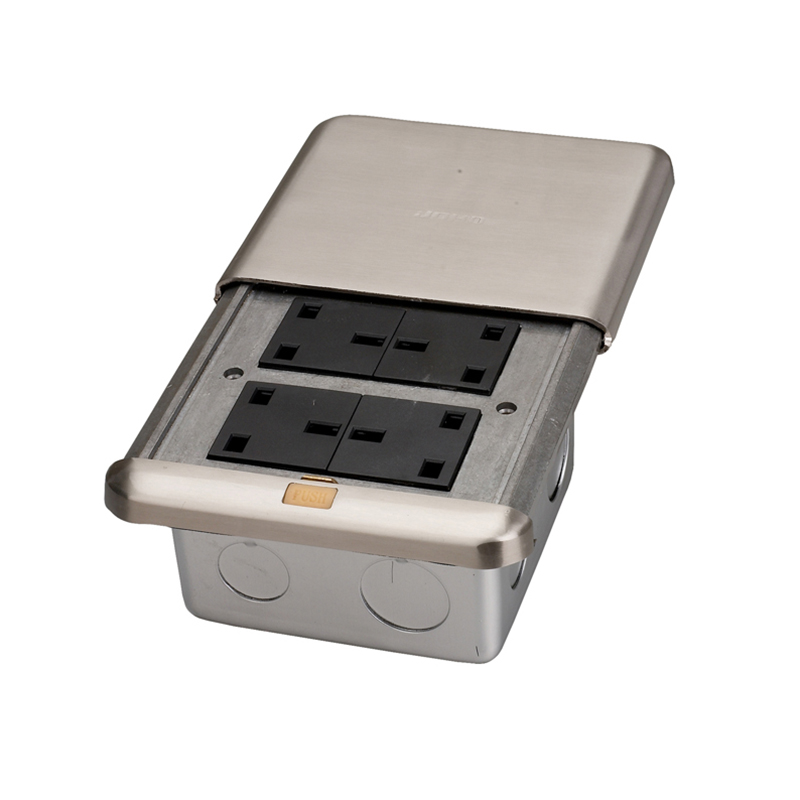

DHM-628/PNU Sliding type Floor socket box

Short Description:

The open method is horizontal push-pull, suitable for the table bottom or height-limited ground installation.

DHM-628/PNU Sliding type Floor socket box

  • Large capacity of the modules,

  • The open method is horizontal push-pull, suitable for the table bottom or height-limited ground installation.

Model

DHM-628/GNU

DHM-628/PNU

Panel Material

Brass alloy

Stainless steel

Surface color

Gold

Silver

Panel size

125×125mm

Cutout

105×105mm

Application

Residential or General Purpose

Type

Floor socket/Countertop socket

Frequency

50Hz-60Hz

Grounding

Standard Grounding

Voltage

110-250V

Rated Current

10-16A/According to different countries

Frame capacity

4 modules

Available modules

Type 118 series

Steel Base Box

100×100×55mm (T100)

Supply complete with Temporary Plastic cover plate for box.
