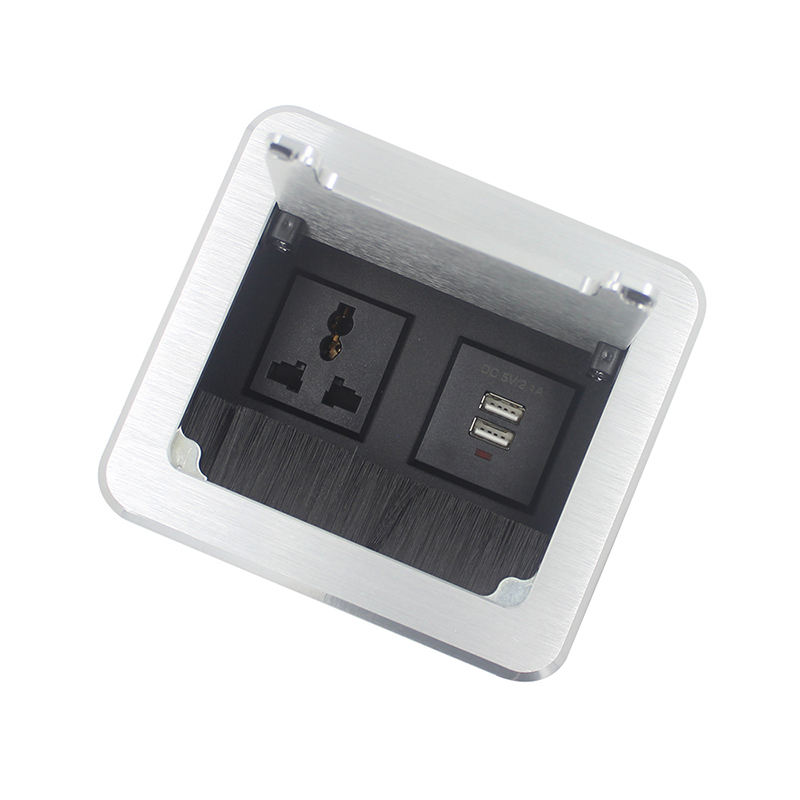

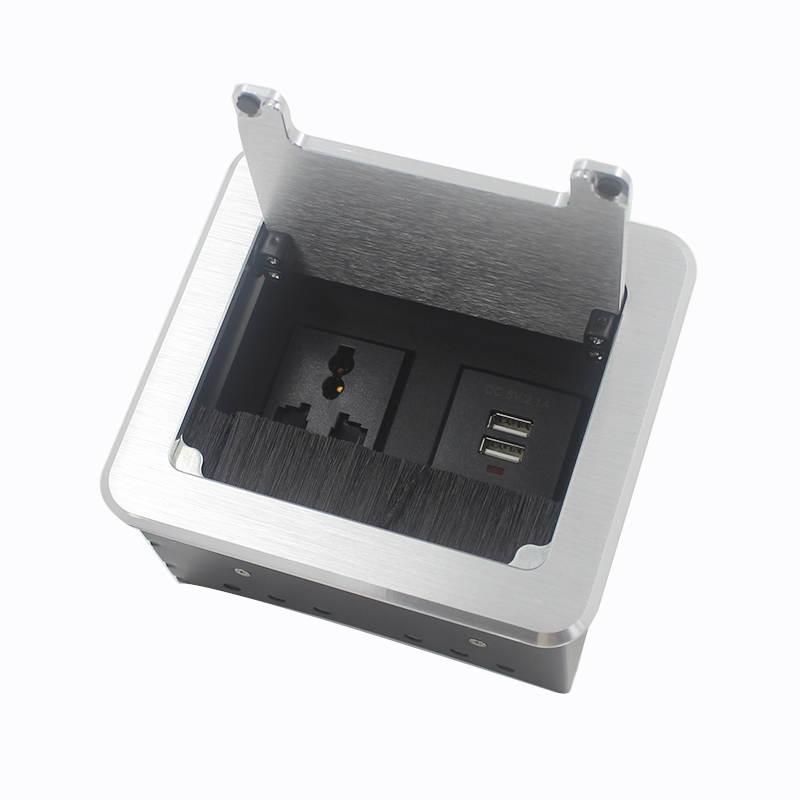

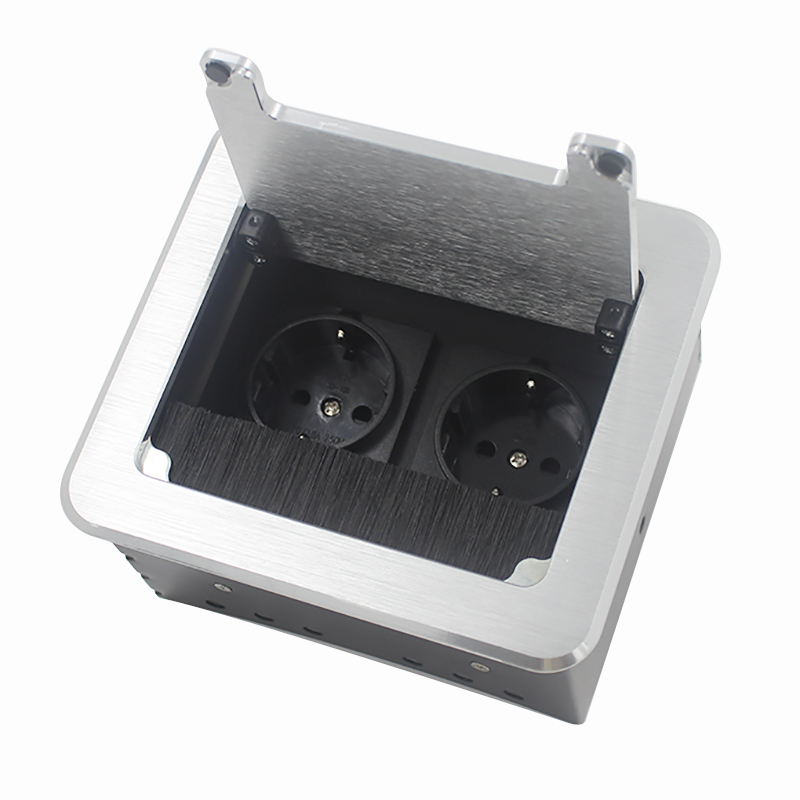

BS-101/S Brush type Tabletop socket

Short Description:

With dustproof surface, available in brushed black / silver finish.

BS-101/S Brush type Tabletop socket

Product panel the big gap setting, convenient line, when using part of the internal jumpers, jump line qualification from the gap, the cover plate can still closed. Socket box body with a brush, shade big gap, socket whole appear more upscale.

1.     45-degree flip design, equipped with high-end damping gas spring, smooth, elegant flip;

2.     Surface is high-grade scratch-resistant, bottom panel on the configuration corresponding to the modules, no soldering required.

3.     With dustproof surface, available in brushed black / silver finish.

4.     Modules can be free combined.

Model

BS-101/BK

BS-101/S

Surface color

Black

Silver

Panel Material

Aluminum alloy

Box Material

Steel

Panel size

145×130mm

Box Size

130×115mm

Height

78mm

Cutout

133×118mm

Frequency

50Hz-60Hz

Grounding

Standard Grounding

Voltage

110-250V

Rated Current

10-16A/According to different countries

Frame capacity

4 modules
