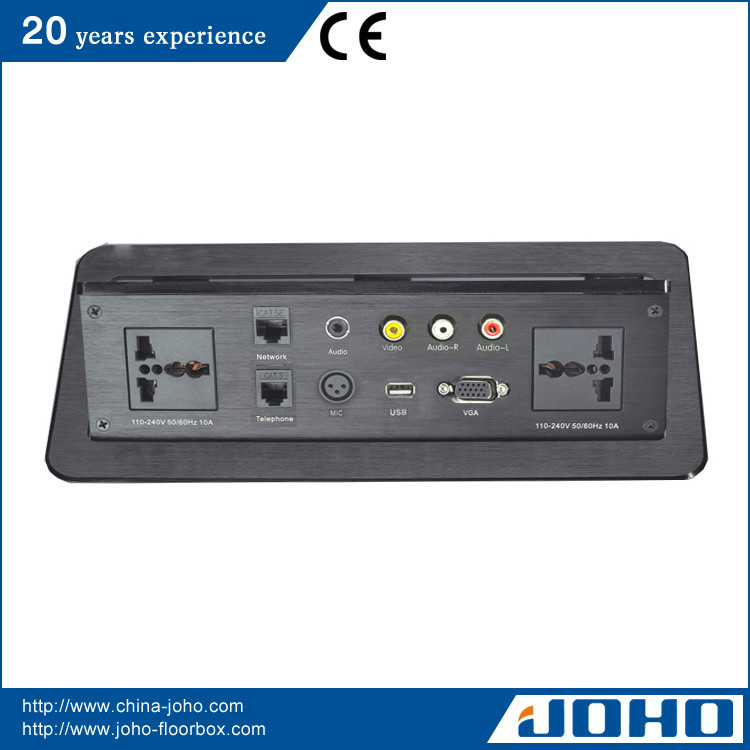

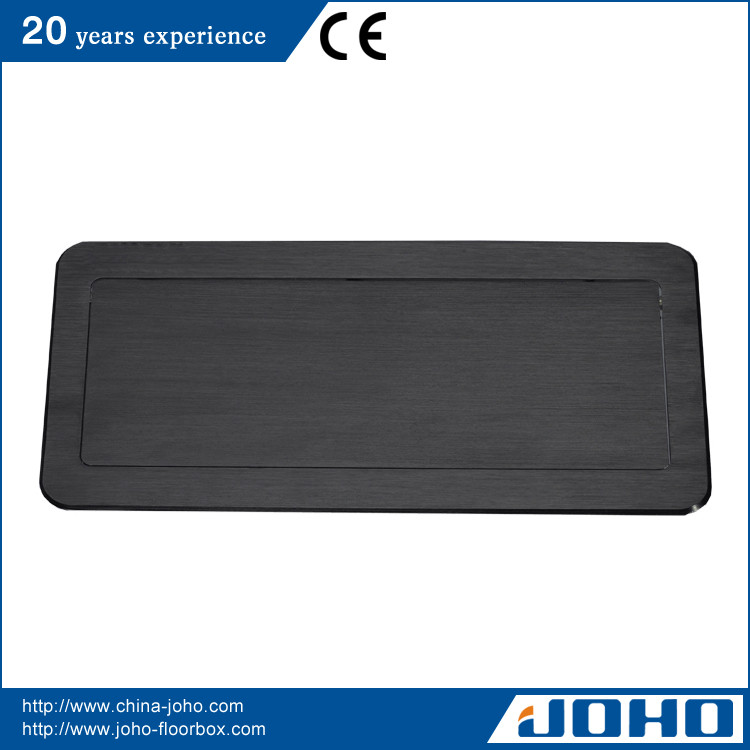

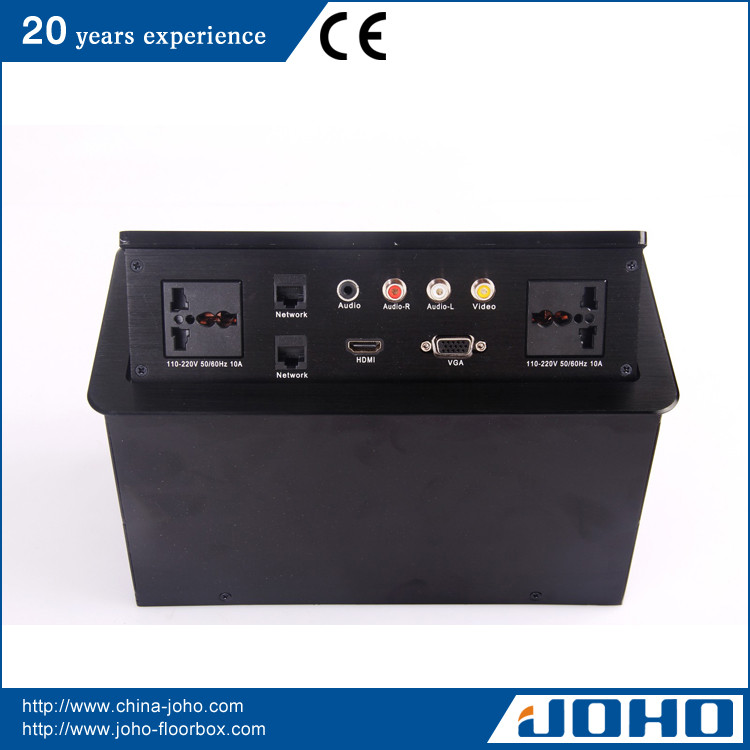

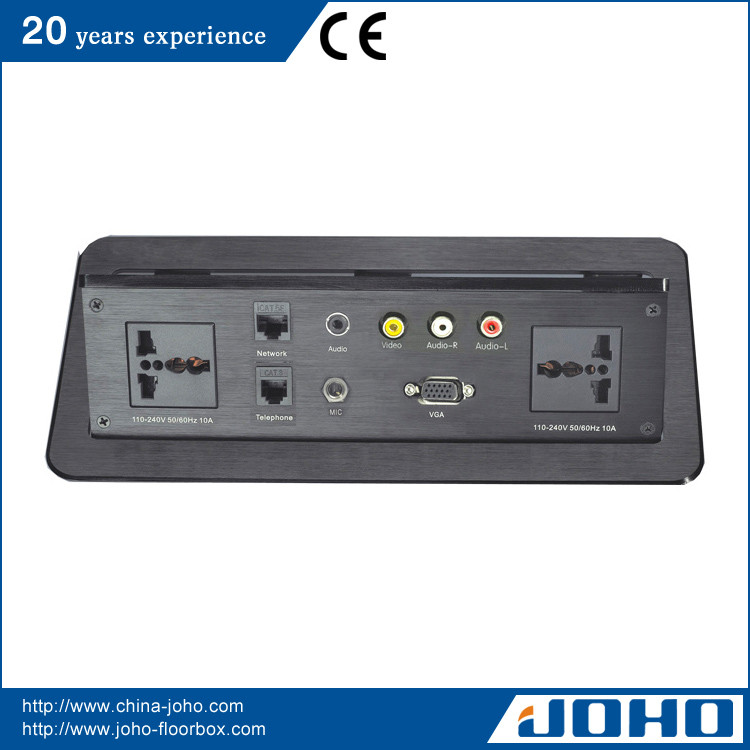

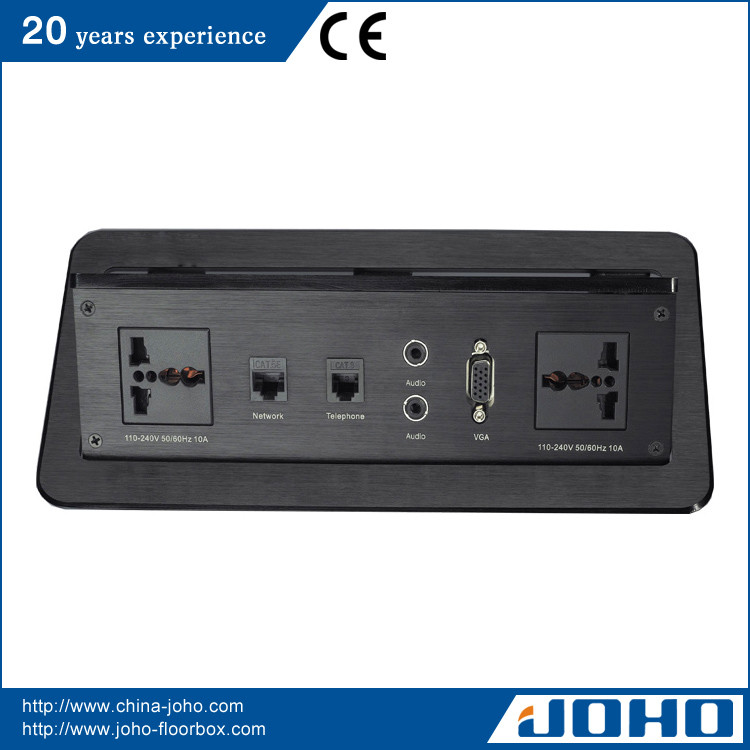

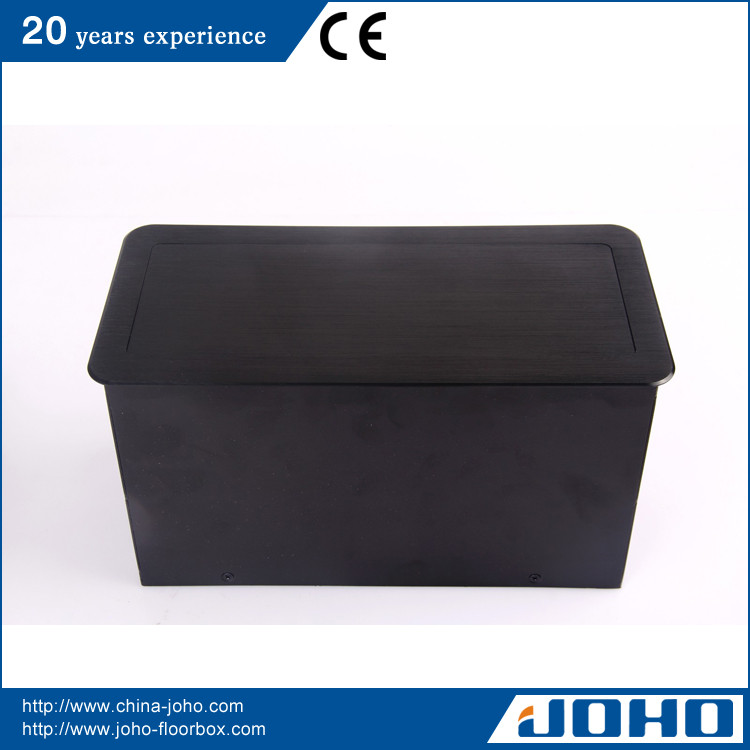

Multi port zinc alloy Desk Power Outlet

Panel processing: high-grade hard aviation aluminum panel, through oxidation, wire drawing, coloring and other processing, all show the socket of high-end, luxury.

Product main structure design.

Product specifications:

Model No.: P-266C

Open Style: multi port zinc alloy Desk Power Outlet

Panel Size: 266*130mm

Installation Size: 256*123*150mm

Opening radian: R=12.5m

Panel Material: Zinc alloy

Panel color: Black / Silver

Base box material: Steel

Country of Origin: Made in china – Zhejiang province

Multi port zinc alloy Desk Power Outlet

adopts pneumatic auxiliary mechanism design with trunk lock machines.

Method of use:

1. When using just light socket at the top of the panel, release mechanism trunk lock, the socket panel open by

pneumatic rod device. Hidden socket of the two power supply, two data USB function modules according to 45 DHS.

2. Multi port zinc alloy Desk Power Outlet after using, light to close the trunk lock, press the socket panel on the front panel of each function module interfaces with hidden, closing the socket after maintain flush with the desktop.

Product features:

1. Products using pneumatic draw stem and machinery trunk lock mechanism design, durable;

2. The function module on the surface, the module interface DHS show 45, convenient connection;

3. The function module interface can exchange or production according to the requirement, function chooses diversification;

4. With bottom box adopts mother for mother and docking, interface of fixed or half empty box, leakage, is mother to mother corresponding line is still convenient plug.

Available sockets:

Power socket:

Such as German outlet 16A 250V AC, French outlet 16A 250V AC, British outlet 13A 250V AC, American outlet15A/20A 125V AC, Australian outlet 10A 250V AC, Universal outlet 10A 250V AC, 2pole outlet 10A 250V AC,

Weak data:

Computer Cat 5E, Cat 6, Telephone, USB ……

USB power 2.1A 5V

FAQ:

1. Are you a factory or trading company?

We are a factory.

2. Could I put my own logo on the floor box?

Sure, customers’ logo can be made by laser.

3. Should I pay extra for logo printing?

No need.

4. What is your MOQ?

Our MOQ is 50pcs for each one item.

For special requirements & OEM /ODM service, please consult us.
